Catalog : Above Ground Closed Top Tanks : Cone Bottom Tanks & Steel Stands : Product Detail

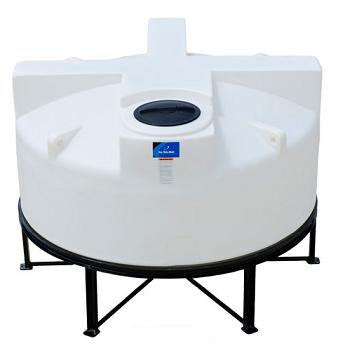

Cone Bottom Tanks & Steel Stands
Part No. CB0850-90
US Gallons 850
Cone Angle 15ยบ
Diameter 90"
Height 56"
Height in Stand 67"
Manway 16"
Weight 592 lbs
Ships from Hospers, IA & Burlington, ON
Drawing
View Drawing

For this product you can:
Request a Quote

Rotationally molded using High Density Polyethylene Resin for one piece seamless construction.
This tank series is designed for either indoor or outdoor applications.


Cone bottom tanks provide fast and complete drainage of liquids and powders.

  • Tanks furnished with a 16″ Vented Lid Assembly
  • A 2″ FPT heavy-duty polypropylene fitting
  • Gallon Indicators are included in the sidewall
  • Designed for the containment of chemicals with a specific gravity of 1.7 or less
  • Tanks manufactured from high-density polyethylene with U.V. inhibitors
  • Standard tank color is white, consult factory for optional colors
  • FDA approved materials available
  • **Heavy Duty Steel Support Stand Available**
